    s1promax SHGC SIRR Car Window Film Transmittance Meter Solar Film Transmission Meter Light Window Tinting Tester
    s1promax SHGC SIRR Car Window Film Transmittance Meter Solar Film Transmission Meter Light Window Tinting Tester

    s1promax SHGC SIRR Car Window Film Transmittance Meter Solar Film Transmission Meter Light Window Tinting Tester

    s1promax SHGC SIRR Car Window Film Transmittance Meter Solar Film Transmission Meter Light Window Tinting Tester

    Brand
    GuoOu
    Payment term
    T/T, west union
    Price term
    EXW, FOB
    Place of original
    GuangZhou
    Package
    standard export carton
    MOQ&delivery
    1pc with 2days after payment.
    Price
    Get Latest Price
    Inquire Online
    Get the latest price
    Quantity Needed：
    Pieces
    E-mail：
    Product Description
    Product Name
    Solar film transmittance meter
    Resolution
    0.1%
    Accuracy
    ±2%
    Wave band
    (different model)
    Visible light：380nm ~ 780nm                                              All model
    Ultraviolet：Peak wavelength 365nm                                   All model
    Infrared：Peak wavelength 940nm                                       S1、S1 ProMax
    Infrared：Peak wavelength 1400nm                                    S1 Pro、S1 ProMax
    Infrared：Full infrared band ( Full IR )                                   S1 ProMax
    Bluetooth
    Yes
    Power supply
    Built-in rechargeable batter
    Test slot
    wide 15 mm, deep 60mm
    Weight
    About 175g
    Size
    161*79*20 mm
    window tint meter

    • S1 serials solar film transmittance meter


    solar film transmittance meter adopts
    parallel light path design which is very suitable for optical properties testing of automotive films, explosion-proof films,
    architectural films, thermal insulation films,film glass and other materials.It can measure UVR,IRR,VLT at the same time ,
    and S1ProMax model also can measure SHGC/TSER,SIRR.
    The large-screen LCD screen display and large test slot,easy to use it.
    Details Images
    Can measure total solar energy rejection rate (TSER) Optical transmittance meter
    window tint meter
    window tint meter
    window tint meter
    GUOOU S1 serials model is both a transmission meter and a portable transmittance meter.
    The instrument can test three parameters of
    visible light, infrared and ultraviolet.
    This solar film transmission meter has three different display modes, which are light
    transmittance display, rejection rate display and light transmission display.
    Product Usage
    window tint meter
    GUOOU S1 Transmittance meter


    portable transmission meter is a classic three-band solar film tester. Three test holes are used to test the visible light transmittance, UV rejection rate and infrared rejection rate of the material. Simply place the tested material in the test slot then we can read the three test data at the same time. It is mainly suitable for optical properties of various uniform and transparent materials such as solar film, laminated glass and automobile side glass.

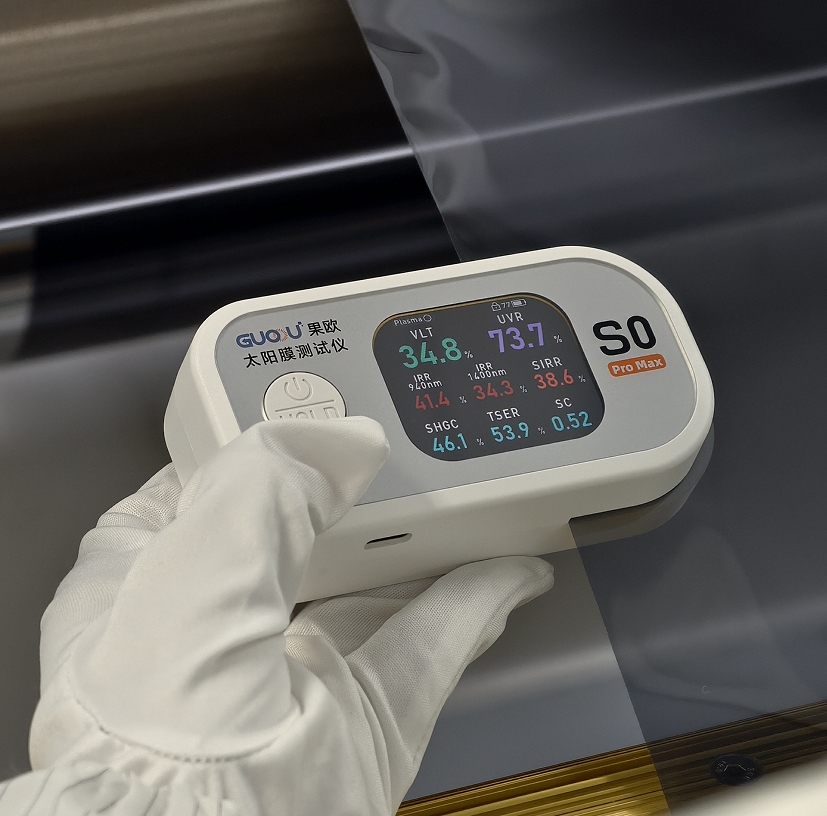

    GUOOU S1promax Optical transmittance meter


    can measure six parameters,including:UV rejection rate,visible light transmittance, infrared 950nm and infrared 1400nm rejection rates,all infrared rejection rate and SHGC total solar projection ratio.Other instruments can only measure three of these
    parameters,so there is a difference in price.Many customers will find it difficult to choose a three-band window tint meter,
    because the solar film rejection is different when measuring with different infrared light sources. But if you use this instrument,there is no such confusion,you can choose the middle gear to read the average of the two infrared rejection rates.
    window tint meter
    Packing&Shipping
    window tint meter
    window tint meter
    window tint meter
    window tint meter
    Company Introduction
    FAQ
    Q1. Can I request 1 or 2 sample for testing the quality?
    Yes, we are pleased to send you samples to test the quality. support mixed samples.
    Q2. What about production lead time?
    Sample order takes about 1-3 days. for bulk order it takes about 7-15 days.
    Q3. Can I brand this product with my logo?
    Yes, we can offer many kinds of branding service, such as screen printing, laser carving,embossing & debossing.
